YSS DOBBELT STØDDÆMPER JUSTERBAR Moto Guzzi Le Mans 1000

Dobbelt støddæmper YSS RG362-340TRCL-06-B Passer til flere modeller – se model/år i oversigten. Fræset aluminiumshus. Justerbar rebound og kompression (30 klik).
Lagerstatus: På lager
SKU: 789.43.59
Forventet leveringstid: 1-5 hverdage
Før pris: 11.930,00 kr.
7.813,00 kr.
Mobilepay Viabill Creditcard Apple Pay Google Pay






  • Hurtig levering med GLS - pakkeshop - firma - hjemme
  • Betal sikkert - vi passer godt på dine oplysninger
  • Del betalingen op med ViaBill - nemt og fleksibelt
  • Find de rigtige dele - brug vores præcise søgemodul
  • Over 20 års erfaring

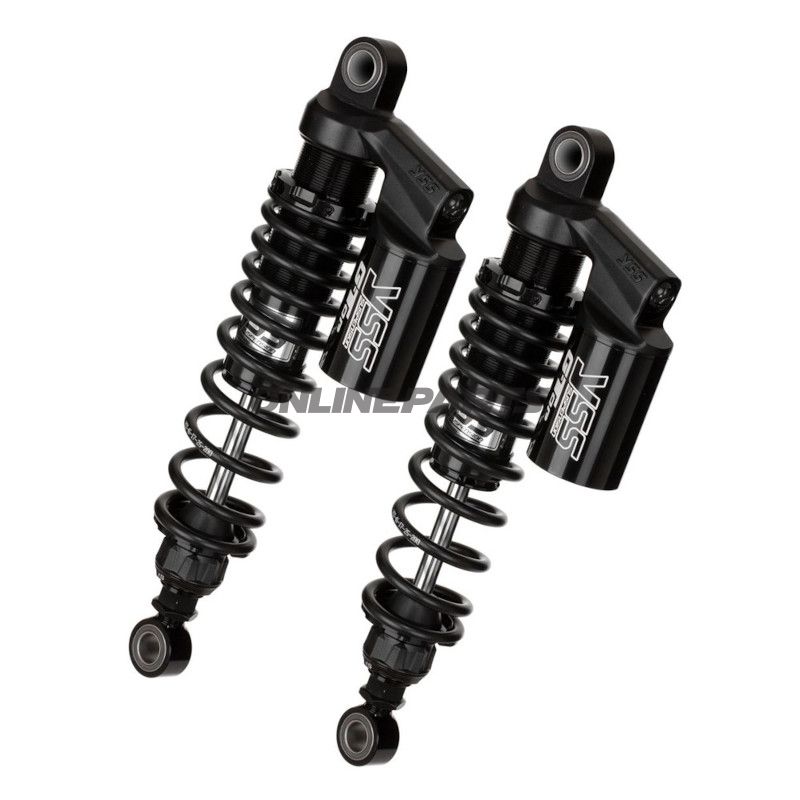

YSS Dobbelt Støddæmper Justerbar til Moto Guzzi

YSS dobbelt støddæmper er designet til at forbedre affjedringen på en række Moto Guzzi-modeller, hvilket resulterer i bedre vejgreb og komfort under kørsel. Denne støddæmper placeres bag på motorcyklen og er essentiel for at sikre optimal stabilitet og håndtering, især ved kurvekørsel og ujævne vejforhold.

Støddæmperen har et fræset aluminiumshus, hvilket giver en solid konstruktion med lav vægt. Den justerbare fjederstiver gør det muligt at tilpasse fjederforspændingen, rebound (30 klik) og kompression (30 klik) efter førerens præferencer og kørselsforhold. Fjederforspændingen kan låses med en stiftskrue, hvilket sikrer, at indstillingerne forbliver stabile under kørsel.

Støddæmperens længde kan justeres med +/- 5 mm, hvilket giver mekanikeren mulighed for at finjustere opsætningen, så den passer perfekt til motorcyklens geometri og førerens behov. Justeringsværktøjet medfølger, hvilket gør installationen og tilpasningen mere praktisk.

Tekniske Specifikationer:
Type:   Gas Damper
Top mount:   Eye
Inner Diameter Eye:   14 mm
Length:   335-345 mm
Bottom mount:   Eye
Inner Diameter Eye:   14 mm
Adjustment:   Compression
    Preload (continuous)
    Adjustable Length +/- 5mm
    Rebound
Spring colour:   Black
Spring Rate:   20-30
Spring Length:   200 mm
Spring Diameter:   46 mm
Damper reservoir:   Yes
Manufacturer:   YSS
Piston diameter:   36 mm
Rod Diameter:   12 mm

Støddæmperens kompatibilitet omfatter følgende Moto Guzzi-modeller:

  • Moto Guzzi Le Mans 850 III (1981-1984)
  • Moto Guzzi Le Mans 1000 (1984-1988)
  • Moto Guzzi SP 1000 II (1984-1987)
  • Moto Guzzi California 1000 III (1987-1993)
  • Moto Guzzi Mille 1000 GT (1987-1994)
  • Moto Guzzi S 1000 (1990-1993)
  • Moto Guzzi SP 1000 III (1990-1996)

Ved installation af den nye støddæmper kan det være en god idé at kontrollere og eventuelt udskifte relaterede komponenter som f.eks. bøsninger og monteringselementer, da slid på disse dele kan påvirke støddæmperens ydeevne. Dette sikrer, at hele affjedringssystemet fungerer optimalt og bidrager til en bedre køreoplevelse.

YSS dobbelt støddæmper er en del af YSS produktlinjen, og kan identificeres med MPN: 789.43.59 og GTIN: 8859253904250.

Se den komplette liste af køretøjer, delen passer på, nedenfor:
Technical Data:
Type:   Gas Damper
Top mount:   Eye
Inner Diameter Eye:   14 mm
Length:   335-345 mm
Bottom mount:   Eye
Inner Diameter Eye:   14 mm
Adjustment:   Compression
    Preload (continuous)
    Adjustable Length +/- 5mm
    Rebound
Spring colour:   Black
Spring Rate:   20-30
Spring Length:   200 mm
Spring Diameter:   46 mm
Damper reservoir:   Yes
Manufacturer:   YSS
Piston diameter:   36 mm
Rod Diameter:   12 mm

Denne reservedel passer på følgende køretøjer / modeller:

MærkeModelÅrgang
Moto GuzziCalifornia 1000 III Carenato Verkleidung Gussrad1988
Moto GuzziCalifornia 1000 III Carenato Verkleidung Gussrad1989
Moto GuzziCalifornia 1000 III Carenato Verkleidung Gussrad1990
Moto GuzziCalifornia 1000 III Carenato Verkleidung Speichenr1988
Moto GuzziCalifornia 1000 III Carenato Verkleidung Speichenr1989
Moto GuzziCalifornia 1000 III Carenato Verkleidung Speichenr1990
Moto GuzziCalifornia 1000 III Gussrad1987
Moto GuzziCalifornia 1000 III Gussrad1988
Moto GuzziCalifornia 1000 III Gussrad1989
Moto GuzziCalifornia 1000 III Gussrad1990
Moto GuzziCalifornia 1000 III Gussrad1991
Moto GuzziCalifornia 1000 III Gussrad1992
Moto GuzziCalifornia 1000 III Gussrad1993
Moto GuzziCalifornia 1000 III ie Gussrad1990
Moto GuzziCalifornia 1000 III ie Gussrad1991
Moto GuzziCalifornia 1000 III ie Gussrad1992
Moto GuzziCalifornia 1000 III ie Gussrad1993
Moto GuzziCalifornia 1000 III ie Speichenrad1990
Moto GuzziCalifornia 1000 III ie Speichenrad1991
Moto GuzziCalifornia 1000 III ie Speichenrad1992
Moto GuzziCalifornia 1000 III ie Speichenrad1993
Moto GuzziCalifornia 1000 III Speichenrad1987
Moto GuzziCalifornia 1000 III Speichenrad1988
Moto GuzziCalifornia 1000 III Speichenrad1989
Moto GuzziCalifornia 1000 III Speichenrad1990
Moto GuzziCalifornia 1000 III Speichenrad1991
Moto GuzziCalifornia 1000 III Speichenrad1992
Moto GuzziCalifornia 1000 III Speichenrad1993
Moto GuzziLe Mans 10001984
Moto GuzziLe Mans 10001985
Moto GuzziLe Mans 10001986
Moto GuzziLe Mans 1000 Vorderrad 18 Zoll1987
Moto GuzziLe Mans 1000 Vorderrad 18 Zoll1988
Moto GuzziLe Mans 850 III1981
Moto GuzziLe Mans 850 III1982
Moto GuzziLe Mans 850 III1983
Moto GuzziLe Mans 850 III1984
Moto GuzziMille 1000 GT1987
Moto GuzziMille 1000 GT1988
Moto GuzziMille 1000 GT1989
Moto GuzziMille 1000 GT1990
Moto GuzziMille 1000 GT1991
Moto GuzziMille 1000 GT1992
Moto GuzziMille 1000 GT1993
Moto GuzziMille 1000 GT1994
Moto GuzziS 10001990
Moto GuzziS 10001991
Moto GuzziS 10001992
Moto GuzziS 10001993
Moto GuzziSP 1000 II1984
Moto GuzziSP 1000 II1985
Moto GuzziSP 1000 II1986
Moto GuzziSP 1000 II1987
Moto GuzziSP 1000 III1988
Moto GuzziSP 1000 III1989
Moto GuzziSP 1000 III1990
Moto GuzziSP 1000 III1991
Moto GuzziSP 1000 III1992
Moto GuzziSP 1000 III1993
Moto GuzziSP 1000 III1994
Moto GuzziSP 1000 III1995
Moto GuzziSP 1000 III1996
